Aluminium Alloy Brass Pneumatic Solenoid Valve ...

Material : Plastic + Brass

Working Medium : Air/oxygen/rare Gases

Max Pressure : 0.4Mpa

Pressure Range : 0~0.35Mpa

Temperature Range : -5~60℃

Port Size : G1/4″

Net Weight : 0.4kg/pcs

Voltage : DC12V,DC24V

Class Of Insulation : F Class

Cv : 0.89

Model : MP-08

Medium : air/oxygen/rare gases

Pressure IN-port1.2-OUT1.2 : Min:0.001Mpa

FOB Price : negotiation

Min.Order Quantity : 10PCS

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo Or ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

Detailed Product Description

Material:	Plastic + Brass	Working Medium:	Air/oxygen/rare Gases
Max Pressure:	0.4Mpa	Pressure Range:	0~0.35Mpa
Temperature Range:	-5~60℃	Port Size:	G1/4″
Net Weight:	0.4kg/pcs	Voltage:	DC12V,DC24V
Class Of Insulation:	F Class	Cv:	0.89

Aluminium Alloy Brass Pneumatic Solenoid Valve Plunger Kits Guide Head 100 ~ 400 Series

Specifiction

Model	MP-08
Medium	air/oxygen/rare gases
Pressure IN-port1.2-OUT1.2	Min:0.001Mpa
Service pressure range	0~0.35Mpa
Max operating pressure	0.4Mpa
Effective cross-sectional arer	16mm2
Cv value	0.89
Ambient temperature	(-5~60c°)
Operating fluid temperature	(-5~50c°)
Allowable inside lerkage	pressure=0.2Mpa ≤0.1/min
Allowable outside lerkage	pressure=0.2Mpa ≤0.1/min
Mounting posture	According to our design
Response time	ON=≤0.1MS OFF=≥0.1MS
Noise level
Life cycles	≥10 million times
Allowable voltage fluctuation	DC12V DC24V
Range of allowable voltage	±15%
Power consumption	1W
Class of Insulation	F class
Protective struchure	IP65/IEC/DIN40050
Piping thread	G1/4″
Lead wire length	produce as requested
Dimensions Mounting	71.3mm42mm64.3mm(h)
Material	aluminium alloy brass
Net Weight	0.4kg/pcs

Aluminium Alloy Brass Pneumatic Solenoid Valve ...

Previous: Explosion Proof 12 Volt Solenoid Valve Coil 24V / 11V / 220V With Wire Lead

Next: Solenoid Valve 5V110-06

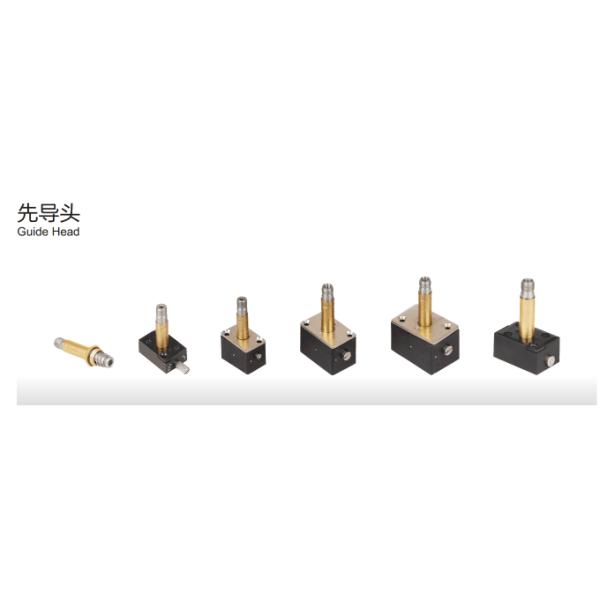

Guide Head

Plunger

Aluminium Alloy Brass Pneumatic Solenoid Valve ... Images
