Aluminum SC / SU Pneumatic Air Cylinder Kits Bl...

Name : SC Cylinder Kits

Working Medium : Air

Material : Aluminum

Colour : Black

Buffer Type : Gasket Buffer/Adjustable Buffer

Port Size : M5X0.8/G1/8"

FOB Price : negotiation

Min.Order Quantity : 10PCS

Supply Ability : 10000 Piece/Pieces per Month

Port : NingBo Or ShangHai

Payment Terms : T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

Name:	SC Cylinder Kits	Working Medium:	Air
Material:	Aluminum	Colour:	Black
Buffer Type:	Gasket Buffer/Adjustable Buffer	Port Size:	M5X0.8/G1/8″

SC / SU Pneumatic Cylinders Kits black cover with bore from 32mm to 320mm

Specification

Aluminum SC / SU Pneumatic Air Cylinder Kits Bl...

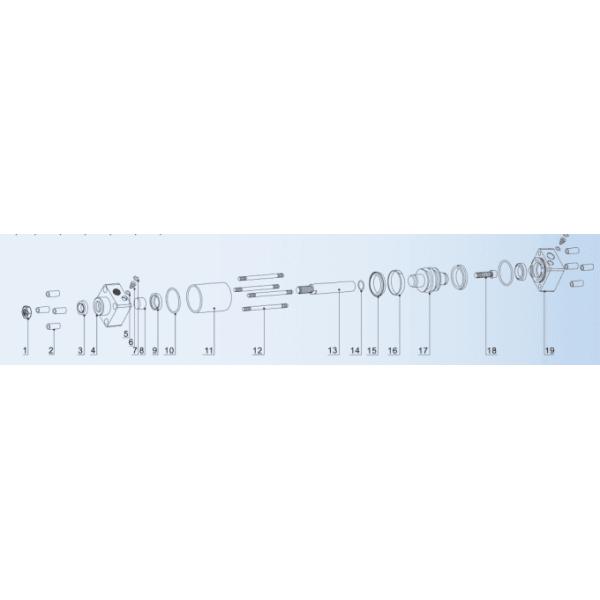

NO.	Designation	Material	NO.	Designation	Material
1	Nut	Carbon Steel	11	Barrel(Without)	Hard anodized aluminum

2	Tie-rod Nut	Carbon Steel	12	Tie-rod(Without)

3	Front Cover Seal	NBR	13	Piston Rod(Without)	S45C Hard chrome carbon steel

4	Front Cover	Aluminum Alloy	14	Rod O-ring	NBR

5	O-ring	NBR	15	Piston Seal	NBR

6	Adjustable Screw		16	Wear Ring	PA66

7	Block Slip		17	Piston	Aluminum Alloy

8	Self Lubricating bearing	PTFE+Brass	18	Hex Socket Screw	Carbon Steel

9	Cushion Seal	NBR	19	Back Over	Aluminum Alloy

10	Cover O-ring	NBR
